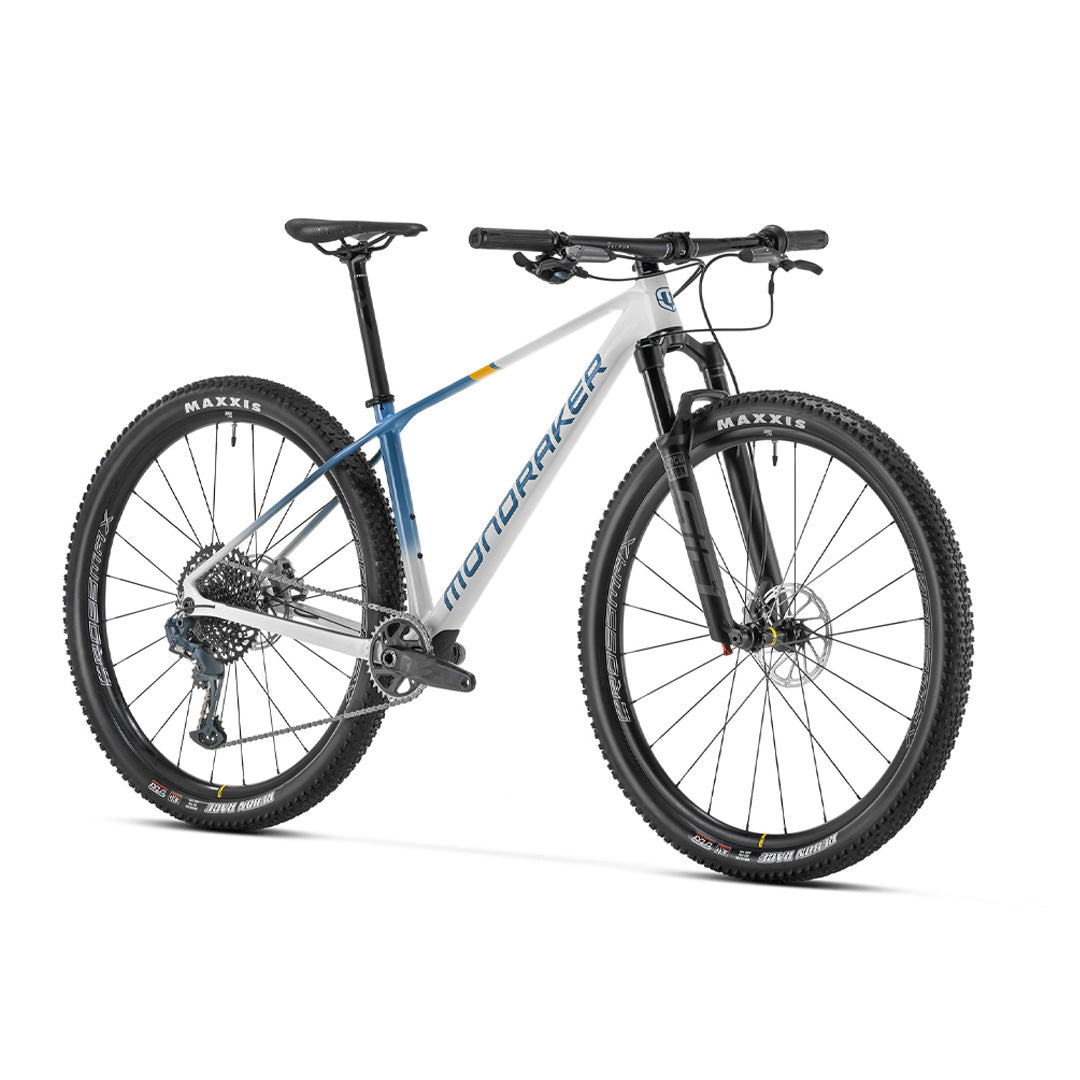

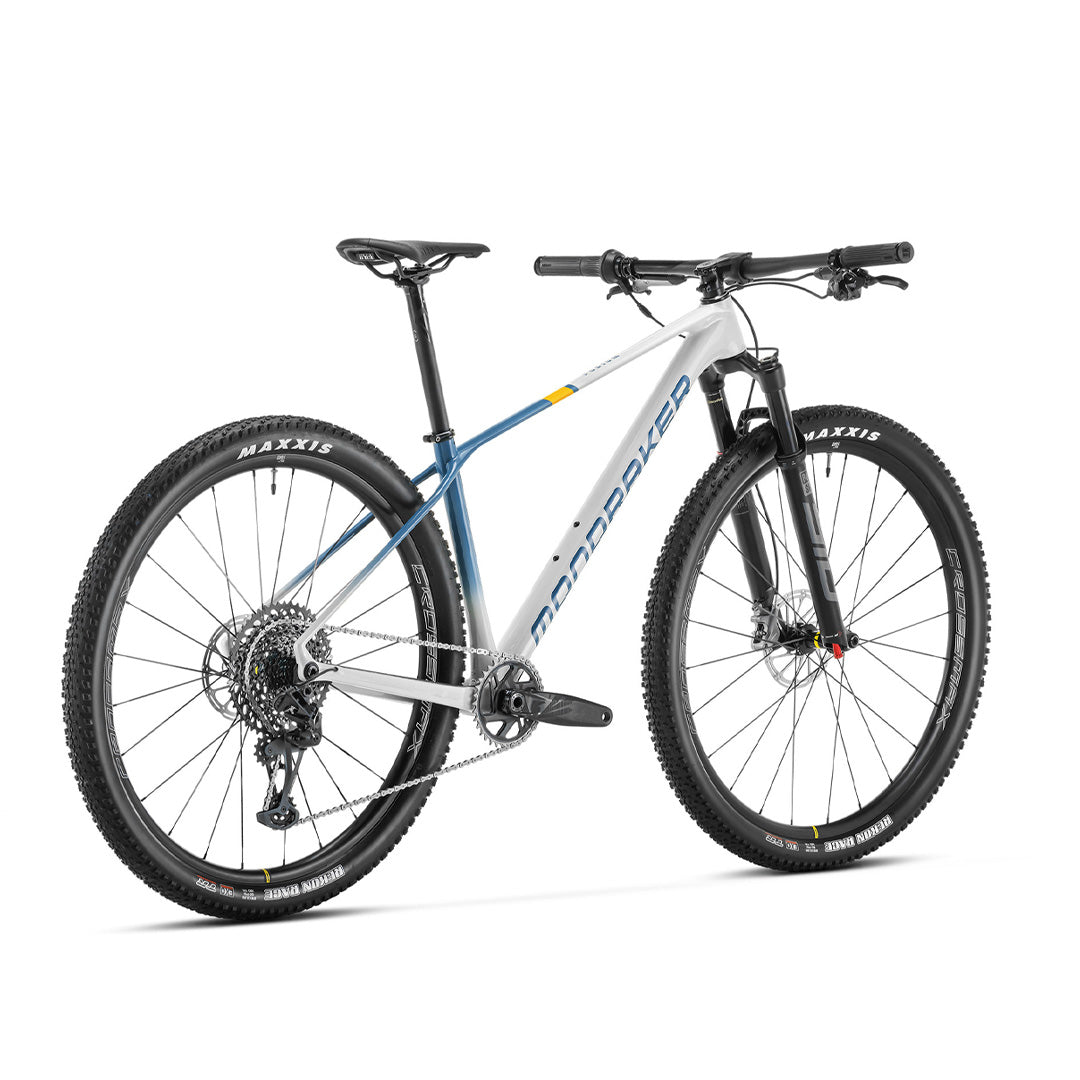

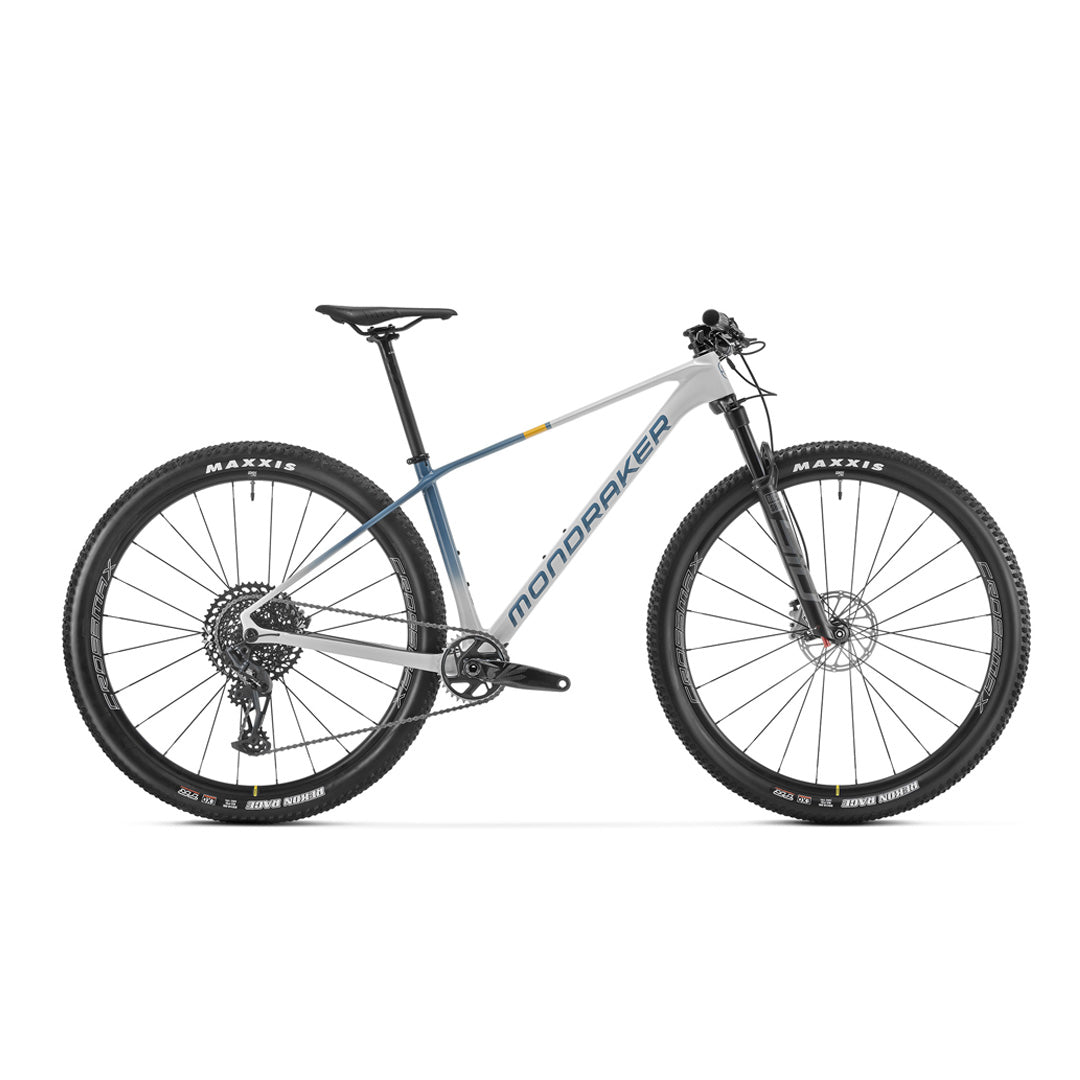

PODIUM

Cuadro

Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible.

Tallas

S: 390mm / M: 420mm / L: 470mm / XL: 510mm

Horquilla

Rockshox SID SL Base RL 2P Remote 29, 100mm, Charger, DebonAir, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Ajustes: OneLock 2 position remote compression (open/lock), low-speed rebound, air preload.

Mando remoto horquilla

RockShox TwistLoc Base FullSprint 125 B1 2 Position (10mm), Twist to lock, Twist to unlock.

Dirección

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º.

Potencia

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm.

Manillar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore.

Puños

Onoff Twin, 1lock-on, 135mm.

Tija

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm.

Sillín

Fizik Antares R8.

Freno delantero

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.

Freno trasero

Sram Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad.

Manetas de freno

Sram Level Bronze, tools-free reach adjust, lever pivot bushings.

Llantas

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes.

Radios

Mavic straight-pull double butted, contactless lacing.

Buje delantero

Mavic, Boost 15x110mm, IS 6 bolts.

Buje trasero

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub.

Neumático delantero

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.

Neumático trasero

Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead.

Bielas

Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M size: 175mm, L size: 175mm, XL size: 175mm, CL 53.

Platos

34T, CNC-machined alloy, X-SYNC 3.

Eje de pedalier

Sram DUB BSA, sealed bearings, 73mm.

Cadena

Sram NX Eagle, 12s, Powerlock.

Cambio - trasero

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2.

Mandos - pulsadores de cambio

Sram Trigger GX Eagle, 12s, X-Actuation 1:2.

Piñones

Sram XG-1275, 10-50T, 12s.

Patilla de cambio

Sram UDH.
